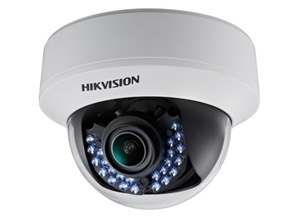

DS-2CE56C5T-(A)VFIR

HD720P Low-light Indoor Vari-focal IR Dome Camera

• 1.27 Megapixel high-performance CMOS

• Analog HD output, up to 720P resolution

•    True Day/Night
•    2.8 - 12mm vari-focal lens
•    OSD menu, 3D DNR, Smart IR
•    Up to 30m IR distance
•    Low illumination
•    Up the Coax(HIKVISION-C, Pelco-C Protocol)

DS-2CE56C5T-(A)VFIR

Camera
Image Sensor:	\|	1.27MP CMOS Image Sensor
Signal System:	\|	PAL/NTSC
Effective Pixels:	\|	1305(H)x977(V)
Min. Illumination:	\|	0.001 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time:	\|	1/25(1/30) s to 1/50,000 s
Lens:	\|	2.8-12mm @ F1.4 Angle of view: 92° - 29.3°
Lens Mount:	\|	φ14
Adjustment Range:	\|	Pan: 0 - 340°, Tilt: 0 - 75°, Rotation: 0 - 355°
Day& Night:	\|	IR cut filter with auto switch
Video Frame Rate:	\|	720p@25fps/720p@30fps
HD Video Output:	\|	1 Analog HD output
Synchronization:	\|	Internal Synchronization
CVBS Output:	\|	1Vp-p Composite Output(75Ω/BNC)
S/N Ratio:	\|	More than 62 dB
Up the Coax:	\|	Support
Menu
Automatic Exposure:	\|	Globe AE/DWDR
Auto Gain:	\|	Low/Middle/High/Off
D/N Mode:	\|	Color/ BW/ EXT
Auto White Balance:	\|	Auto / Manual
Private Mask:	\|	On/Off, maximum 8 zones
Motion Detection:	\|	On/Off, maximum 4 zones
Language:	\|	English/Chinese
Function:	\|	Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Digital Zoom, Mirror
General
Operating Conditions:	\|	-20 °C - 45 °C (-4 °F - 113 °F) Humidity 90% or less (non-condensing)
Power Supply:	\|	12 VDC±15% -A: 12 VDC±15%, 24 VAC±15%
Power Consumption:	\|	Max4W -A: Max5W
IR Range:	\|	Up to 30m
Communication :	\|	Up the coax Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimension:	\|	φ136 × 101 mm (φ5.35” × 398”)
Weight:	\|	600 g
