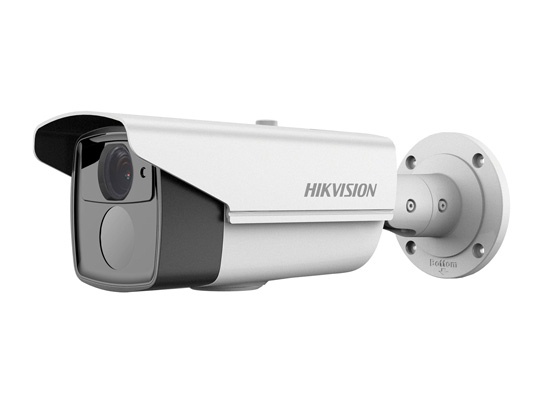

DS-2CE16D5T-(A)VFIT3
HD1080P WDR Vari-focal EXIR Bullet Camera
2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
2.8-12mm vari-focal lens
True Day/Night
OSD menu, 3D DNR, Smart IR
True WDR, up to 120dB
Up to 50m IR distance
IP66 weatherproof
Up the Coax(HIKVISION-C, Pelco-C Protocol)
24V AC/ 12V DC (-A) |
|
| |
| Camera |
|
| Image Sensor: |
| |
2MP CMOS Image Sensor |
|
| Signal System: |
| |
PAL/NTSC |
|
| Effective Pixels: |
| |
1944(H)×1092(V) |
|
| Min. Illumination: |
| |
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
0.014 Lux @ (F1.4,AGC ON),0 Lux with IR |
|
| Shutter Time: |
| |
1/25(1/30) s to 1/50,000 s |
|
| Lens: |
| |
2.8-12mm @ F1.4
Angle of view: 103° - 32.1° |
|
| Lens Mount: |
| |
φ14 |
|
|
| Adjustment Range: |
| |
Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
|
| Day& Night: |
| |
IR cut filter with auto switch |
|
| Wide Dynamic Range: |
| |
120dB |
|
| Video Frame Rate: |
| |
1080p@25fps/1080p@30fps |
|
| HD Video Output: |
| |
1 Analog HD output |
|
| Synchronization: |
| |
Internal Synchronization |
|
| CVBS Output: |
| |
1Vp-p Composite Output(75Ω/BNC) |
|
| S/N Ratio: |
| |
More than 62 dB |
|
| Up the Coax: |
| |
Support |
| Menu |
|
| Camera ID: |
| |
On/off (15 characters, position programmable) |
|
| Auto White Balance: |
| |
ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
|
| Private Mask: |
| |
On/Off, maximum 8 zones |
|
| Motion Detection: |
| |
On/Off, maximum 4 zones |
|
| BLC: |
| |
On/Off |
|
| AGC: |
| |
Support |
|
| Anti-flicker: |
| |
On/ Off |
|
| Language: |
| |
English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
|
| Function: |
| |
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel
correction, SMART D-ZOOM |
|
| Scene: |
| |
Indoor, Outdoor, Indoor1, LOW-LIGHT |
| General |
|
| Operating Conditions: |
| |
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 90% or less (non-condensing) |
|
| Power Supply: |
| |
12 VDC±15%
-A: 12 VDC±15%, 24 VAC±15%
|
|
| Power Consumption: |
| |
Max7W
-A: Max10W
|
|
| Weather Proof: |
| |
IP66 |
|
| IR Range: |
| |
Up to 50m |
|
| Communication : |
| |
Up the coax
Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
|
|
| Dimension: |
| |
300.82×100.76×107.55mm(11.84×3.97×4.23) |
|
| Weight: |
| |
700 g (1.54 lbs) |
|
|
|
|
| |
| | |
| |
|
|
