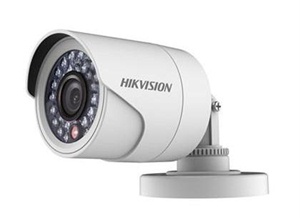

DS-2CE16D1T-IR
HD1080P IR Bullet Camera
2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night, Smart IR
Up to 20m IR distance
IP66 weatherproof
OSD menu
Up the Coax(HIKVISION-C Protocol) |
|
| |
| Camera |
|
| Image Sensor: |
| |
2MP CMOS Image Sensor |
|
| Signal System: |
| |
PAL/NTSC |
|
| Effective Pixels: |
| |
1930(H) × 1088(V) |
|
| Min. Illumination: |
| |
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
|
|
| Shutter Time: |
| |
1/25(1/30) s to 1/50,000 s |
|
| Lens: |
| |
3.6mm, 6mm optional, Angle of View: 91.3°(3.6mm), 59.9°(6mm) |
|
| Lens Mount: |
| |
M12 |
|
|
| Adjustment Range: |
| |
Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° |
|
| Day& Night: |
| |
IR cut filter with auto switch |
|
| Video Frame Rate: |
| |
1080p@25fps/1080p@30fps |
|
| HD Video Output: |
| |
1 Analog HD output |
|
| Synchronization: |
| |
Internal Synchronization |
|
| S/N Ratio: |
| |
More than 62 dB |
|
| Up the Coax: |
| |
Support |
| Menu |
|
| Camera ID: |
| |
On/Off (0-255) |
|
| D/N Mode: |
| |
Color/ BW/ Auto/ EXT |
|
| Auto White Balance: |
| |
Auto/User/Push/8000K/6000K/4200K/3000K |
|
| Private Mask: |
| |
On/Off, maximum 8 zones |
|
| Motion Detection: |
| |
On/Off, maximum 4 zones |
|
| BLC: |
| |
On/Off |
|
| AGC: |
| |
Support |
|
| Anti-flicker: |
| |
On/ Off |
|
| Language: |
| |
English/Chinese |
|
| Function: |
| |
Digital noise reduction, Mirror |
| General |
|
| Operating Conditions: |
| |
-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
|
|
| Power Supply: |
| |
12 VDC±15% |
|
| Power Consumption: |
| |
Max4W |
|
| Weather Proof: |
| |
IP66 |
|
| IR Range: |
| |
Up to 20m |
|
| Communication : |
| |
Up the coax
Protocol: HIKVISION-C(Coaxitron)
|
|
| Dimension: |
| |
Φ70×149.5mm (Φ2.76×5.89) |
|
| Weight: |
| |
360g (0.79 lb) |
|
|
|
|
| |
| | |
| |
|
|
